ConceptWall 50-FP

FIRE PROTECTION SYSTEMS

ConceptWall 50-FP

ARLANGA alu > Fire protection systems > ConceptWall 50-FP

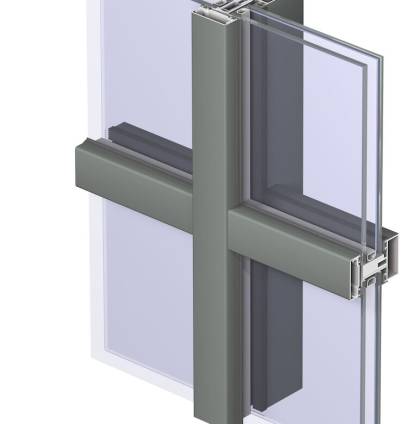

ConceptWall 50-FP is an advanced aluminum facade and roofing system specifically designed to meet high fire protection standards while ensuring unlimited design flexibility and construction efficiency. This system allows for the strategic creation of fire protection zones in critical areas, providing safety without compromising on aesthetics or functionality.

ConceptWall 50-FP stands out not only for its exceptional fire resistance but also for its ability to integrate large glass surfaces, bringing light and modernity to spaces. Its modular construction enables the design of complex façades and roofing systems without sacrificing stability or security.


CW50 Technical parameters
Thermal insulation: Uf-value from 0,56 W/m2K depending on the choice of frame/sash and glass thickness
Acoustics: Rw(C;Ctr) = 47 (-2;-6) dB, depending on the type of glazing
Air tightnesssandarumas:up to 1950 Pa (RE1950)
Wind load resistance: up to2400 Pa (E2400)
Water tightness: up to 1950 Pa (RE1950)
Burglar resistance: up to RC2-RC3
